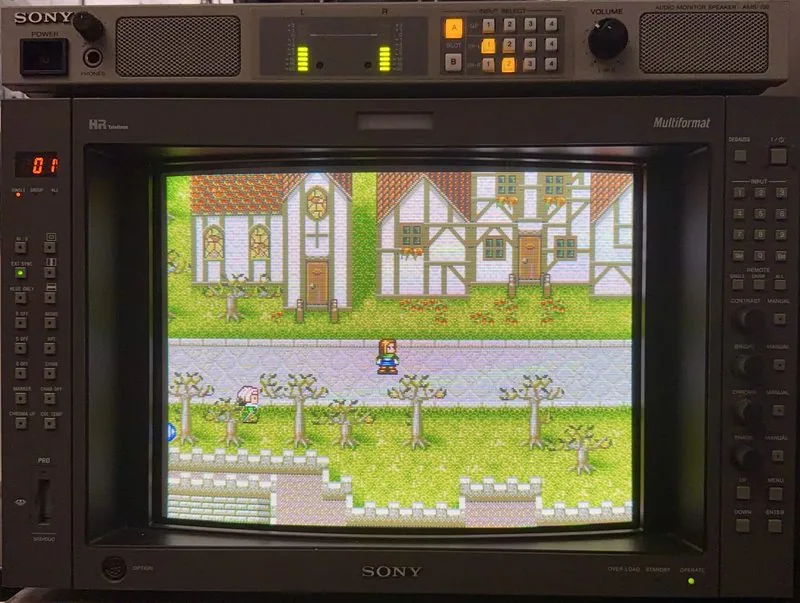

Sony BVM-A14F5U

Every great saga needs a finale, and the A-series is how Sony's CRT story ends: one final generation, built with everything the company had learned, released into a world already turning to flat panels. The A14F5U is that finale in fourteen inches — the master-grade CRT perfected at the exact moment it became art.

It behaves like something from a later century. Beam landing correction and digital uniformity iron the image flat into the corners in a way no analog-era chassis can approach. A calibration probe hangs on the front of the glass and walks the white point to D65 by measurement rather than by eye. The monitor's entire personality — every setting, every trim — saves to a Memory Stick and travels with you.

It was born to work in packs. Ethernet remote, addressing for a wall of thirty-two units, a control system designed for facilities that ran monitors the way server rooms run racks. In a home bay, all that engineering distills to one thing: total, casual command over a reference-grade picture.

And this one is done. All three option slots filled, the card set complete — SDI, HD, and an analog board that adds SCART, component and VGA beyond anything the factory ever offered. There is nothing left to hunt for it, which is a rare and specific pleasure in a hobby built on hunting. The A-series set is closed, and it closed at the top.

The master-grade CRT, perfected at the exact moment it became art.

Inputs, formats, and what it takes

Formats

240p, 480i/p, 576i/p, 720p, 1080i, 1080/24PsF

Sync

15–45 kHz

Composite

Via option boards

Y/C

Via BKM-61D (installed)

RGB / component

Via BKM-68X (clone installed)

SD-SDI

Via BKM-61D (installed)

HD-SDI

Via BKM-62HS (owned)

Option slots

3 (61D installed; set complete)

Control

Built-in panel; Ethernet remote; Memory Stick setup save; RS-485 (32 monitors)

Weight

~48 lb

Work log

What has been done to it since it arrived.

• BKM-68X analog input board fitted — The analog component and RGB board for the A series — a clone, since originals are close to unobtainable — adding SCART, component and VGA the factory never offered.
• Full service by SavonPat, 2025 — Fully converged and aligned; the beam-landing and uniformity systems doing what they were built for.

More photos in the gallery →

The long-form feature, the full 28-line spec sheet and its sources are in Trinitron Fleet, Vol. 1; the side-by-side of every model is on the fleet page. Vocabulary — TVL, multiscan, BKM, loop-through — is in the glossary.
